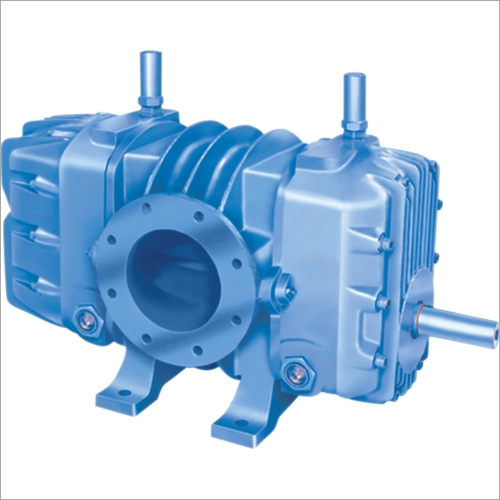

Vacuum Roots Blower

Vacuum Roots Blower

Product Details:

  • Product Type Roots Blower
  • Color Sky Blue
  • Material Steel
  • Processing Type Customized
  • Condition New
  • Technology Other
  • Voltage 220 - 440 Volt (v)
  • Supply Ability : 1 Unit Per Month
100000.00 - 500000.00 INR/Unit
X

Price And Quantity

  • 1 Unit
  • 100000.00 - 500000.00 INR/Unit

Product Specifications

  • New
  • Other
  • Roots Blower
  • Customized
  • Sky Blue
  • Steel
  • 220 - 440 Volt (v)

Trade Information

  • Cash in Advance (CID), Cash Advance (CA)
  • 1 Unit Per Month
  • 3 Week
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

Working Principle Of Vacuum Roots Blower:

Roots blower is a positive displacement system, that pumping limit of which is calculated by size, working rate and pressure conditions. It makes use of double impellers that are attached on parallel shafts, pivoting in reverse direction in an enclosing at the end of side plates. Once the impellers turn, the air is fed into single casing side and constrained out of the reverse side from the existing pressures. The matured distinction pressure relies on the impedance of the connected system. This roots blower does not create any pressure in encasing, even then the release force depends on the system resistance and back pressure. By applying little functional clearance and removing the need of inner lobes greasing, it is possible to attain a successful compressor sealing inlet range from the release region. In the middle of revolution, a couple of machine composite steel, solidified gears and ground timing keep up clearances among the impellers. The supplied air is pure and completely oil free. The lobe compressor-pumping limit, operating at uniform speed stays fairly free of discharge and inlet pressure changes.



The vacuum roots blower is a constant volume rig that carried a settled release against the system reverse force. It is therefore apt to assure that minimum pipeline limitations are forced at the discharge and inlet. Minimum losses of line are assured by satisfactory size funneling and substantial radius bends, which further ensures greater productivity and minimum utilization of energy. Unforeseen variations in pipeline cross section is needed to be evaded.



The limit can be modified by either modifying the speed or venting a portion of the air in environment. The air must not re-circle against the release to pull as it could result in overheating of lube blower. The compressor limit must not be regulated through throttle valves in the admission or release tubing. This can result in the expansion of energy load and can cause harm to the compressor. The expansion in the release air temperature is due to thermal compression.




Technical Specifications Of Vacuum Roots Blower:

Suction Capacity
100 to 8000 M3/Hr.
Discharge Pressure
1 kg/cm2 (G)


Product details

Blower Type

Roots Blower

Voltage

220 V - 440 V

Operation Mode

Automatic

Frequency

50 Hz- 60 Hz

Driven Type

Electric

Body Material

Cast Iron



PPI PUMPS PVT. LTD.
